DMX
Solare Phase 20 Dimmer Panel

Save or Share This Page

Facebook Twitter Youtube Envelope Envelope Share-alt

DMX
Solare Phase 20 Dimmer Panel

SKU: SLR4D-60120-20DP

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$5,931.10/ea

Requires a front end controller to operate and digital 5-wire switches for local control.
Replacement for Part #(s): -

Overview

Documentation

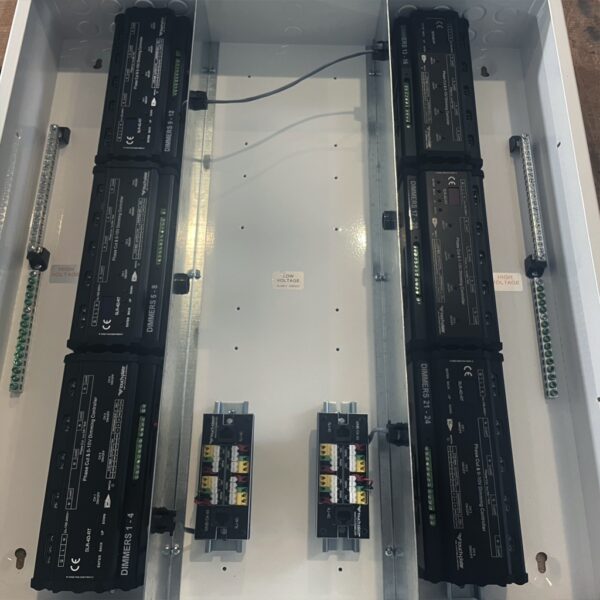

The Solare Phase Dimmer panel is a single-module solution, including the control of 4 circuits per module at 5AMPs per channel. It is DMX-ready, requiring only a connection to the appropriate front end controller. The Solare Phase Dimmer is perfect for a wide range of applications due to its small footprint and versatility. Apart from applications requiring specific protocols, the Solare Phase Dimmer requires a Touch-Plate Master Controller or other DMX controller to perform.

Touch-Plate Model #: SLR4D-60120-20DP

Features

Direct DMX connection via a controller that communicates on a RS-485 network using the 512 protocol.
5 AMPs per Channel
Comes with dimmer module, enclosure and transformer.
Can combine Soluxe Universal Relays and Solare Phase Dimmers in one panel - Contact us for ordering.

Benefits

Full programmable with appropriate front end controller.
Can be used with digital 5-wire switch stations.

Common Applications

Commercial applications that have a DMX controller that communicates on a RS-485 network
Residential applications that have a Time-Keeper MAX controller or a another DMX controller that communicates on a RS-485 network
This product is compatible with Touch-Plate's TimeKeeper Master Controllers. Click below to learn more.
View Product
Time-Keeper MAX
View Product
Time-Keeper Web Interface

Documentation

Sales Sheets:

Solare Phase Sales Sheet
Solare Phase Sales Sheet

Technical Documents:

Solare Phase DMX Manual
Solare Phase DMX Manual

Engraving Templates:

None Available
None Available

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Related Products

Related products

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: SLR4D-60120-20DP
Direct Replacement for Part #(s): -

Panel Details:

Product Type: Programmable Dimmer Panel
Operational Environment: 0 - 60C (0 - 140F) non-condensing atmosphere
# of Relays: -
Product Material: Board: Black Rynite
Enclosure Type: Powder Coated White; U.S. Gauge Steel

Panel Dimensions:

Height: 28 in.
Width: 24 in.
Weight: 55 lbs
Depth: 5 in.
Diameter: -

Technical Information:

Wire Type(s): 24 AWG, 2PR, Shielded
Dimmer Wattage: 5 AMPs per channel (roughly 600W depending on load type)
Load Compatibility: • Incandescent
• Fluorescent
• LED
• Magnetic Low Voltage
• Electronic Low Voltage
Power Input: • 120VAC
Compatible Products: • Touch-plate Digital 5-Wire Switches
• Time-Keeper MAX programmable controller
• Other DMX Controllers using the 512 Protocol.
