DMX

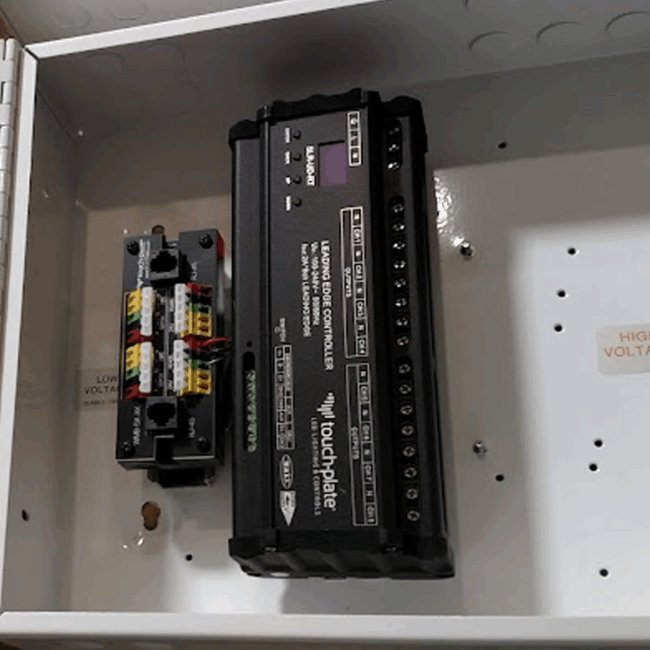

Solare Universal 08 Dimmer Panel

DMX
Solare Universal 08 Dimmer Panel

SKU: SLRUD-XX120-08DP

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$1,687.40/ea

Requires a front end controller to operate and digital 5-wire switches for local control.
Replacement for Part #(s): -

Overview

Documentation

The Solare Universal dimmer panel is a single-module solution, providing control of 8 circuits per module at 2 AMPs per channel or 4 circuits at 4 AMPs per channel. The Solare Dimmer Panel is DMX-ready, requiring only a connection to the appropriate front-end controller. The Solare Universal is perfect for a wide range of applications due to its small footprint and versatility. Apart from applications requiring specific protocols, the Solare Universal requires a Touch-Plate Master Controller to perform. Contact us to order the 4-channel version.

Touch-Plate Model #: SLRUD-XX120-08DP

Features

Direct DMX connection via a controller that communicates on a RS-485 network using the 512 protocol.
2 AMP per channel for 8 channels (available 4 AMP per channel for 4 channels - contact us)
Comes with dimmer module, enclosure and transformer.

Benefits

Full programmable with appropriate front end controller.
Can be used with digital 5-wire switch stations.

Common Applications

Commercial applications that have a DMX controller that communicates on a RS-485 network
Residential applications that have a Time-Keeper MAX controller or a another DMX controller that communicates on a RS-485 network
This product is compatible with Touch-Plate's TimeKeeper Master Controllers. Click below to learn more.

Documentation

Sales Sheets:

Technical Documents:

Engraving Templates:

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Related Products

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: SLRUD-XX120-08DP
Direct Replacement for Part #(s): -

Panel Details:

Product Type: Programmable Dimmer Panel
Operational Environment: 0 - 60C (0 - 140F) non-condensing atmosphere
# of Relays: 8-Relay
Product Material: Board: Black Rynite
Enclosure Type: Powder Coated White; U.S. Gauge Steel

Panel Dimensions:

Height: 12 in.
Width: 14.25 in.
Weight: 17 lbs
Depth: 3.75 in.
Diameter: -

Technical Information:

Wire Type(s): 24 AWG, 2PR, Shielded
Dimmer Wattage: 2 AMPs per channel (roughly 240W depending on load type)
Load Compatibility: • Incandescent
• Fluorescent
• LED
• Magnetic Low Voltage
• Electronic Low Voltage
Power Input: • 120VAC feed into Transformer
Compatible Products: • Touch-plate Digital 5-Wire Switches
• Time-Keeper MAX programmable controller
• Other DMX Controllers using the 512 Protocol.
