Solare Universal Contact Closure Programmable 08 Dimmer Panel

Save or Share This Page

Facebook Twitter Youtube Envelope Envelope Share-alt

DMX
Solare Universal Contact Closure Programmable 08 Dimmer Panel

SKU: SLRUD-XX120-08DP-8I

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$1,988.10/ea

Requires a front end controller to operate (such as the Time-Keeper MAX).
Replacement for Part #(s): -

Overview

Documentation

The Solare Universal contact closure programmable dimmer panel is capable of controlling 8 circuits per module at 2 AMPs per channel or 4 circuits at 4 AMPs per channel. It is DMX-ready, requiring only a connection to the appropriate front-end controller. For residential upgrades, analog/contact closure switches can become smart switches through the use of the Time-Keeper programmable unit. Any button press can be programmed to control a group of dimmers, start a scene or sequence, or various other programmable functions. Apart from applications requiring specific protocols, the Solare Universal requires a Touch-Plate Master Controller to perform. See that here: link to Time-Keeper. Contact us for a 4-channel version.

Touch-Plate Model #: SLRUD-XX120-08DP-8I

Features

Smart Control Bridge converts simple analog switches into fully programmable buttons.
2 AMP per channel for 8 channels (available 4 AMP per channel for 4 channels - contact us)

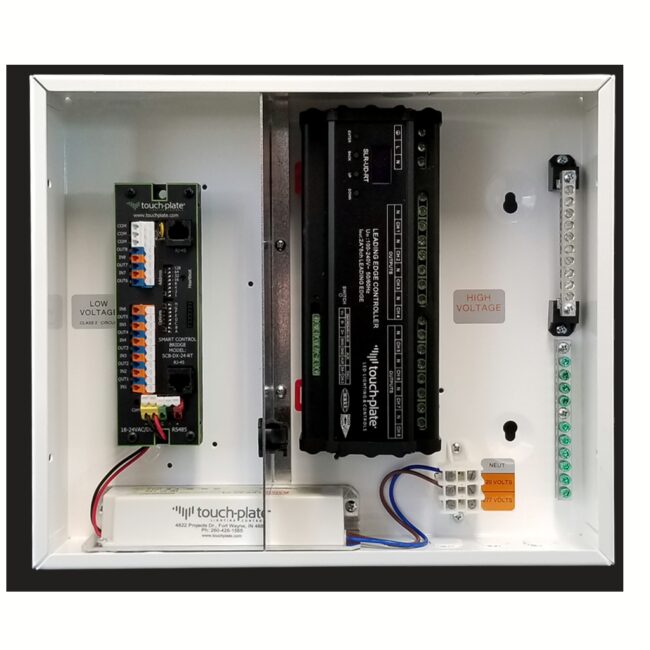

Comes with low voltage switch input board, dimmer module, enclosure and transformer.

Benefits

Fully programmable (timing, scenes, grouping, sequences, dusk-dawn events) with appropriate front end controller such as Time-Keeper MAX
Can be used with simple, older analog wall switches.
Smart Control with any web connected device (phone/tablet/computer) is possible with the addition of a Web Interface to the Time-Keeper Controller.

Common Applications

Residential application where programming/timing/scenes/events (requires Time-Keeper) and optional smart control is desired (requires Web Interface).
Commercial applications that have a DMX controller that communicates on a RS-485 network and require contact closure inputs.
This product is compatible with Touch-Plate's TimeKeeper Master Controllers. Click below to learn more.
View Product
Time-Keeper MAX
View Product
Time-Keeper Web Interface

Documentation

Sales Sheets:

Solare Universal Sales Sheet
Solare Universal Sales Sheet

Technical Documents:

Solare Universal Contact Closure Manual
Solare Universal Contact Closure Manual

Engraving Templates:

None Available
None Available

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Related Products

Related products

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: SLRUD-XX120-08DP-8I
Direct Replacement for Part #(s): -

Panel Details:

Product Type: Programmable Dimmer Panel with Contact Closure Inputs
Operational Environment: 0 - 60C (0 - 140F) non-condensing atmosphere
# of Relays: 8-Relay
Product Material: Boards: Black Rynite
Enclosure Type: Powder Coated White; U.S. Gauge Steel

Panel Dimensions:

Height: 12 in.
Width: 14.25 in.
Weight: 17 lbs
Depth: 3.75 in.
Diameter: -

Technical Information:

Wire Type(s): 24 AWG, 2PR, Shielded
Dimmer Wattage: 2 AMPs per channel (roughly 240W depending on load type)
Load Compatibility: • Incandescent
• Fluorescent
• LED
• Magnetic Low Voltage
• Electronic Low Voltage
Power Input: • 120VAC feed into Transformer
Compatible Products: • Touch-plate Analog/Contact Closure Switches
• Time-Keeper MAX programmable controller with optional Web Interface
• Other DMX Controllers using the 512 Protocol.
