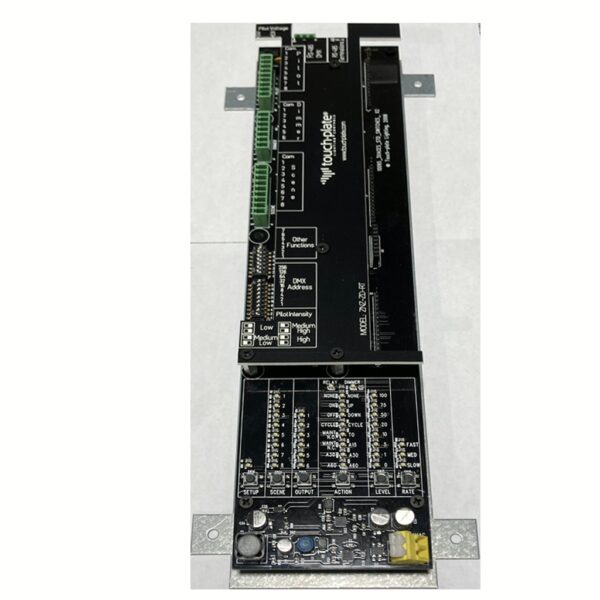

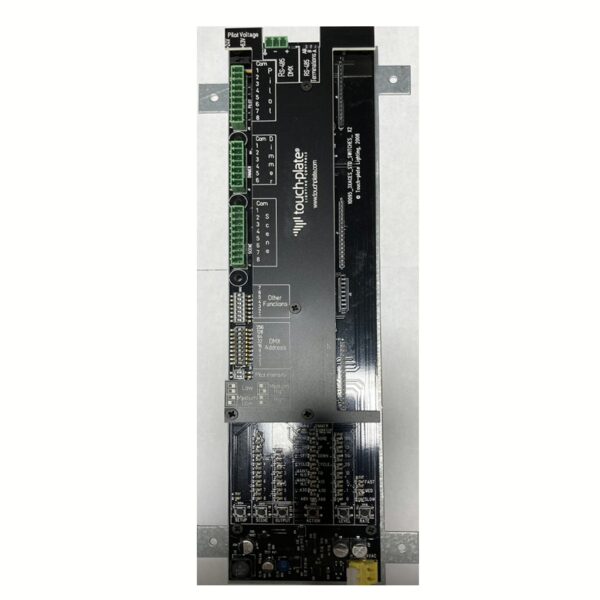

ZoneZ Network Dimmer Replacement Control Board
ZoneZ Network Dimmer Replacement Control Board - Image 2

Save or Share This Page

Facebook Twitter Youtube Envelope Envelope Share-alt

ZoneZ Network Dimmer Replacement Control Board

SKU: ZNZ-ZD-RT

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$636.70/ea

Replacement Control Board Only / No Longer Sold as a Complete Panel
Replacement for Part #(s): ZNZ-ZD-RT

Overview

Documentation

The ZoneZ Network Dimmer replacement control board is ideal for residential and commercial applications requiring basic programming options. Its control board is equipped with a user interface allowing Grouping and Auto-Off control. The ZoneZ Network Dimmer also communicates via RS-485 which allows control from a Time-Keeper Master Controller, if desired.

Touch-Plate Model #: ZNZ-ZD-RT

Features

Light Programming with Grouping

Benefits

Direct Replacement for Existing ZoneZ Network Dimmer (10095) Control Boards

Common Applications

Residential or Commercial

Documentation

Sales Sheets:

ZoneZ Network Dimmer Sales Sheet
ZoneZ Network Dimmer Sales Sheet

Technical Documents:

ZoneZ Network Dimmer Manual
ZoneZ Network Dimmer Manual
Wiring Specifications
Wiring Specifications

Engraving Templates:

None Available
None Available

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: ZNZ-ZD-RT
Direct Replacement for Part #(s): ZNZ-ZD-RT

Panel Details:

Product Type: Replacement Control Board
Operational Environment: Non-condensing atmosphere
# of Relays: 6-Relay
Product Material: Black rynite
Enclosure Type: N/A

Panel Dimensions:

Height: 9 in.
Width: 3.25 in.
Weight: 0.5 lbs
Depth: 2 in.
Diameter: -

Technical Information:

Wire Type(s): 18-22AWG
Dimmer Wattage: N/A
Load Compatibility: • Incandescent lighting, Fluorescent lighting, LED lighting (Forward Phase Only), Magnetic low-voltage lighting, Electronic low-voltage lighting
Power Input: • 24VDC; Fed by Transformer on Relay Board
Compatible Products: • 300W 2 Channel Dimmer (10084)
• 600W 2 Channel Dimmer (10084)
