LED Lighting

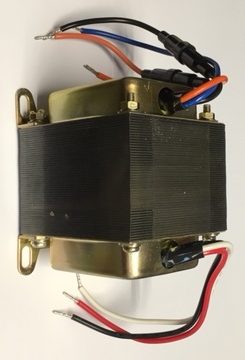

CPS-8004B 24V Transformer
CPS-8004B 24V Transformer - Image 2
CPS-8004B 24V Transformer - Image 3
CPS-8004B 24V Transformer - Image 4

Save or Share This Page

Facebook Twitter Youtube Envelope Envelope Share-alt

CPS-8004B 24V Transformer

SKU: CPS-8004B

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$118.30/ea

NOT compatible with 2-wire relays (models 1550A/B, 2500-B, 4000, and 3000).

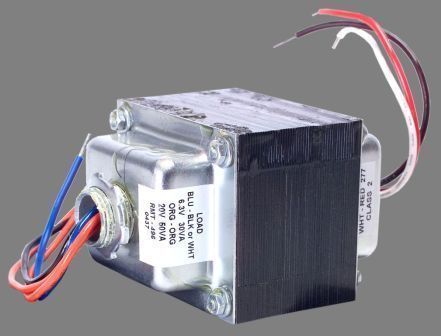

Replacement for Part #(s): CPS-8004

Overview

Documentation

The CPS-8004B Transformer is a replacement power supply for Touch-Plate CPS, CPSP, DMX, and RCP systems installed between 1985-2008. It is a fully compatible replacement for the original CPS-8004 transformers.

Touch-Plate Model #: CPS-8004B

Features

24V Transformer, Class 2 with Dual Primary and Dual Secondary
Primary Voltage: 120V, 60 HZ (White - Black)
Alternate Primary Voltage: 277V, 60 HZ (White - Red)

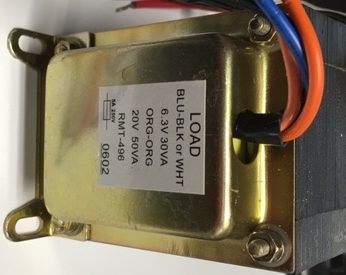

Secondary Voltage: 6.3V, 30 VA (Blue-Black or White)
Alternate Secondary Voltage: 20V, 50VA (Orange - Orange)

Benefits

For use in all older CPS, CPSP, MCP, and RCP pre-wired relay panels.
CSA Listed

Common Applications

It is a fully compatible replacement for original CPS-8004 transformers.
Some panels may require slight modifications to mount this transformer.

Documentation

Sales Sheets:

CPS Sales Sheet
CPS Sales Sheet
RCP Sales Sheet
RCP Sales Sheet

Technical Documents:

CPS Manual
CPS Manual
RCP Manual
RCP Manual

Engraving Templates:

None Available
None Available

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: CPS-8004B
Direct Replacement for Part #(s): CPS-8004

Product Details:

Product Type: 24V Transformer
Operational Environment: Max Operating temp of 65 degrees Celcius
Product Material: -
# of Relays: On boards

Product Dimensions:

Height: 3.375 in.
Width: 3.125 in.
Weight: 4.4 pds lbs
Depth: 2.5 in.
Diameter: -

Technical Information:

Coil Power: N/A
Coil Max Temperature: N/A °F
Wire Type(s): 18-22 AWG
Coil Resistance: N/A
Protocol: Analog
Auxiliary Contact Configuration: N/A
Latching/Switching: • Handled through control boards
Power Input: • Primary Voltage: 120V, 60 HZ (White - Black)
• Alternate Primary Voltage: 277v, 60 HZ (White - Red)
Power Output: • Secondary Voltage: 6.3V, 30 VA (Blue-Black or White)
• Alternate Secondary Voltage: 20V, 50VA (Orange - Orange)
Compatible Products: • CPS, CPSP, MCP, and RCP Power Boards
