2 Wire Management Board

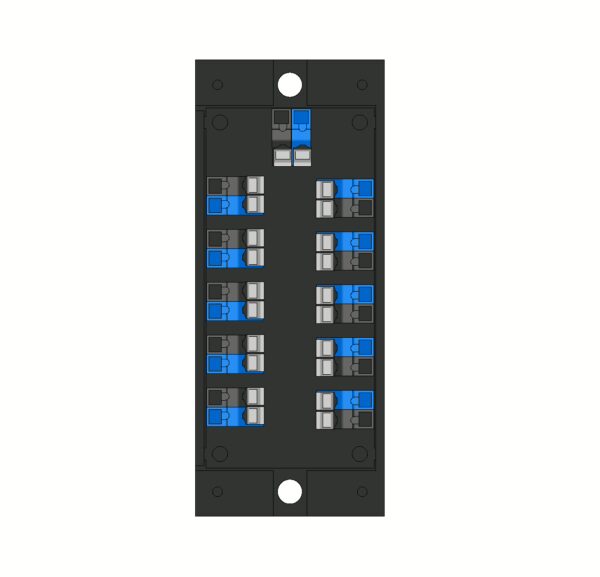

2 Wire Management Board

SKU: WMB-X2-XX

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$103.00/ea

For a Digital 2-wire network.
Replacement for Part #(s): N/A

Overview

Documentation

The 2W Wire Management Board is extremely useful in systems using Digital 2-Wire Control Stations. This product manages incoming wires, allowing a neat and clean connection to a System Master Controller. The 2W Wire Management Board mounts via DIN Rail and can be assembled as part of a system or sold separately. Each unit can handle up to 10 Digital 2-Wire control stations.

Touch-Plate Model #: WMB-X2-XX

Features

Mounts via DIN Rail

Benefits

10 of the 2-wire inputs per board

Common Applications

Wire Management in Time-Keeper or similar control panels

Documentation

Sales Sheets:

Technical Documents:

Engraving Templates:

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Related Products

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: WMB-X2-XX
Direct Replacement for Part #(s): N/A

Product Details:

Product Type: Wire Management Board
Operational Environment: Non-condensing atmosphere
Product Material: Black Rynite
# of Relays: N/A

Product Dimensions:

Height: 4.75 in.
Width: 2 in.
Weight: 0.2 lbs
Depth: 1.5 in.
Diameter: -

Technical Information:

Coil Power: N/A
Coil Max Temperature: N/A °F
Wire Type(s): 16 AWG, 2C, Unshielded
Coil Resistance: N/A
Protocol: 2-wire Digital Network
Auxiliary Contact Configuration: N/A
Latching/Switching: • N/A
Power Input: • 24VAC
Power Output: • 24VAC
Compatible Products: • 2-Wire Time-Keeper controller
