Analog
ZoneZ Lite 04 Dimmer Panel

Save or Share This Page

Facebook Twitter Youtube Envelope Envelope Share-alt

Analog
ZoneZ Lite 04 Dimmer Panel

SKU: ZZLDP-XX120-0004

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$856.00/ea

When upgrading from our Legacy Touch-plate or GE/Remcon system, the entire system should be upgraded at one time due to shared common wires.
Replacement for Part #(s): -

Overview

Documentation

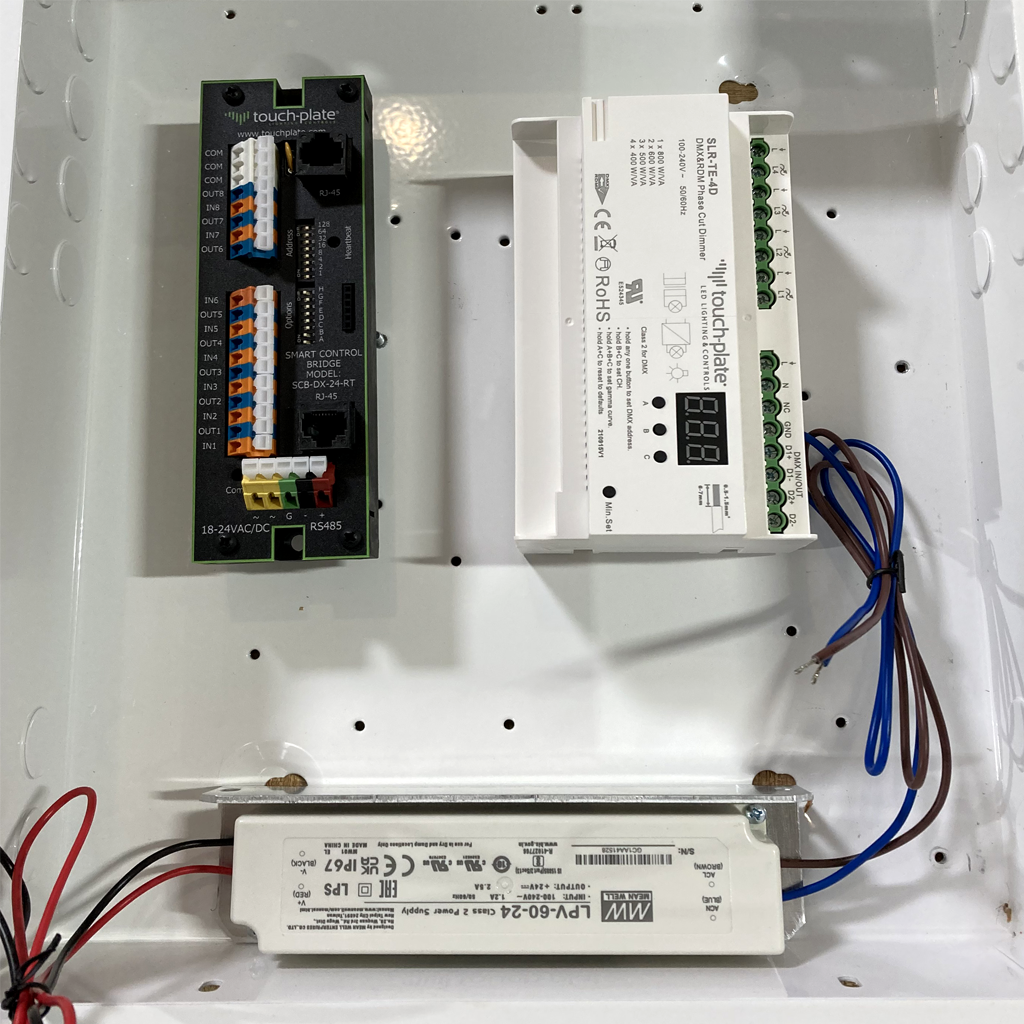

The ZoneZ Lite dimmer panels are perfect for home or small business applications desiring simple low-voltage control with dimming. Besides new installations, ZoneZ Lite dimmer panels are also ideal for upgrades of existing low voltage systems. Dimmers are 1 amp per channel.

Touch-Plate Model #: ZZLDP-XX120-0004

Features

Dimming works by longer button presses to dim up and dim down. Short button presses cycle it on and off.
Pilot light functionality (with updated LED indicator wall switch)
1 AMP per dimmer channel
Can use each dimmer module as a 1, 2, or 3 channel as well (max of 400W per dimmer module)

Benefits

This upgrade system reuses the existing wiring in the walls.
Only switches with lighted buttons would need to be changed at the time of upgrade. The non-lit Touchplate switches can continue to be used with this system.
Provides 4 dimmer channels and 8 Low Voltage Inputs/Outputs

Common Applications

Residential or Commercial
Upgrade for existing Touch-plate or GE/Remcon low voltage relay panels.

Documentation

Sales Sheets:

ZoneZ Lite Dimmer Sales Sheet
ZoneZ Lite Dimmer Sales Sheet

Technical Documents:

ZoneZ Lite Dimmer Panel Manual
ZoneZ Lite Dimmer Panel Manual
Step-by-Step ZoneZ Lite Dimmer Upgrade Guide
Step-by-Step ZoneZ Lite Dimmer Upgrade Guide
Touch-Plate Wiring Guide
Touch-Plate Wiring Guide

Engraving Templates:

None Available
None Available

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Related Products

Related products

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: ZZLDP-XX120-0004
Direct Replacement for Part #(s): -

Panel Details:

Product Type: Upgrade Dimmer Panel
Operational Environment: 0 - 60C (0 - 140F) non-condensing atmosphere
# of Relays: -
Product Material: Boards: Black Rynite
Enclosure Type: Powder Coated White; U.S. Gauge Steel

Panel Dimensions:

Height: 12 in.
Width: 14.25 in.
Weight: 17 lbs
Depth: 3.75 in.
Diameter: -

Technical Information:

Wire Type(s): 18-22 AWG
Dimmer Wattage: 1 AMP per channel/Roughly 120W Depending on load type
Load Compatibility: • Recommend LED Lighting
Power Input: • 120VAC feed into Transformer
Compatible Products: • Touch-plate Analog Contact Closure Wall Switches
