Analog
ZoneZ Universal 08 Dimmer Combo – Without Enclosure

Save or Share This Page

Facebook Twitter Youtube Envelope Envelope Share-alt

Analog

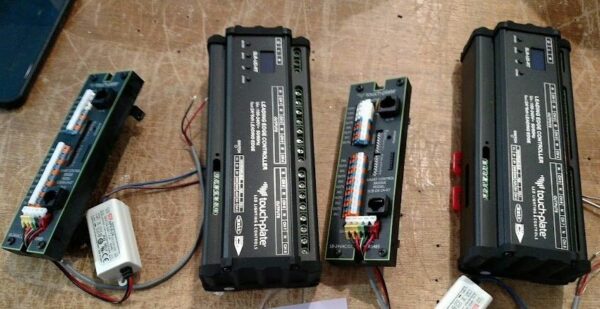

ZoneZ Universal 08 Dimmer Combo – Without Enclosure

SKU: ZZUDC-XX120-0008

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$1,070.00/ea

When upgrading from our Legacy Touch-plate or GE/Remcon system, the entire system should be upgraded at one time due to shared common wires.
Replacement for Part #(s): -

Overview

Documentation

The ZoneZ Universal dimmer panels are perfect for home or small business applications desiring simple low-voltage control with dimming. Besides new installations, ZoneZ Universal dimmer panels are also ideal for upgrades of existing low-voltage systems. ZoneZ Universal dimmer panels are the simplest dimmable lighting control system Touch-Plate offers. DIMMER COMBO ONLY: Designed to retrofit inside existing enclosures.
Considering a system upgrade with ZoneZ Universal? Click here for more information.

Touch-Plate Model #: ZZUDC-XX120-0008

Features

Dimming through longer button presses to dim up and dim down. Short button presses cycle it on and off.
Pilot light functionality (with updated LED indicator wall switch)
2 AMPs per dimmer channel
Dimmer Combos include transformer, cables, Dinrail and mounting screws to retrofit the boards inside the existing enclosure.

Benefits

This upgrade system reuses the existing wiring in the walls.
Only switches with lighted buttons would need to be changed at the time of upgrade. The non-lit Touchplate switches can continue to be used with this system.
Future upgradeable to smart control/timing with purchase of Time-Keeper panel and re-programming of control board.

Common Applications

Residential or Commercial
Upgrade for existing Touch-plate or GE/Remcon low voltage relay panels.

Documentation

Sales Sheets:

ZoneZ Universal Dimmer Panel Sales Sheet
ZoneZ Universal Dimmer Panel Sales Sheet

Technical Documents:

ZoneZ Universal Dimmer Panel Manual
ZoneZ Universal Dimmer Panel Manual
Step-by-Step ZoneZ Universal Dimmer Upgrade Guide
Step-by-Step ZoneZ Universal Dimmer Upgrade Guide
Touch-Plate Wiring Guide
Touch-Plate Wiring Guide

Engraving Templates:

None Available
None Available

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Related Products

Related products

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: ZZUDC-XX120-0008
Direct Replacement for Part #(s): -

Panel Details:

Product Type: Upgrade Dimmer Combo
Operational Environment: 0 - 60C (0 - 140F) non-condensing atmosphere
# of Relays: 8-Relay
Product Material: Boards: Black Rynite
Enclosure Type: N/A

Panel Dimensions:

Height: Contact us for board dimensions in.
Width: -
Weight: 5 lbs
Depth: -
Diameter: -

Technical Information:

Wire Type(s): 18-22 AWG
Dimmer Wattage: 2 AMPs per channel/Roughly 240W Depending on load type
Load Compatibility: • Incandescent
• Fluorescent
• LED
• Magnetic Low Voltage
• Electronic Low Voltage
Power Input: • 120VAC feed into Transformer
Compatible Products: • Touch-plate Analog Contact Closure Wall Switches
