ZoneZ Lite-L Replacement Relay Board

Save or Share This Page

Facebook Twitter Youtube Envelope Envelope Share-alt

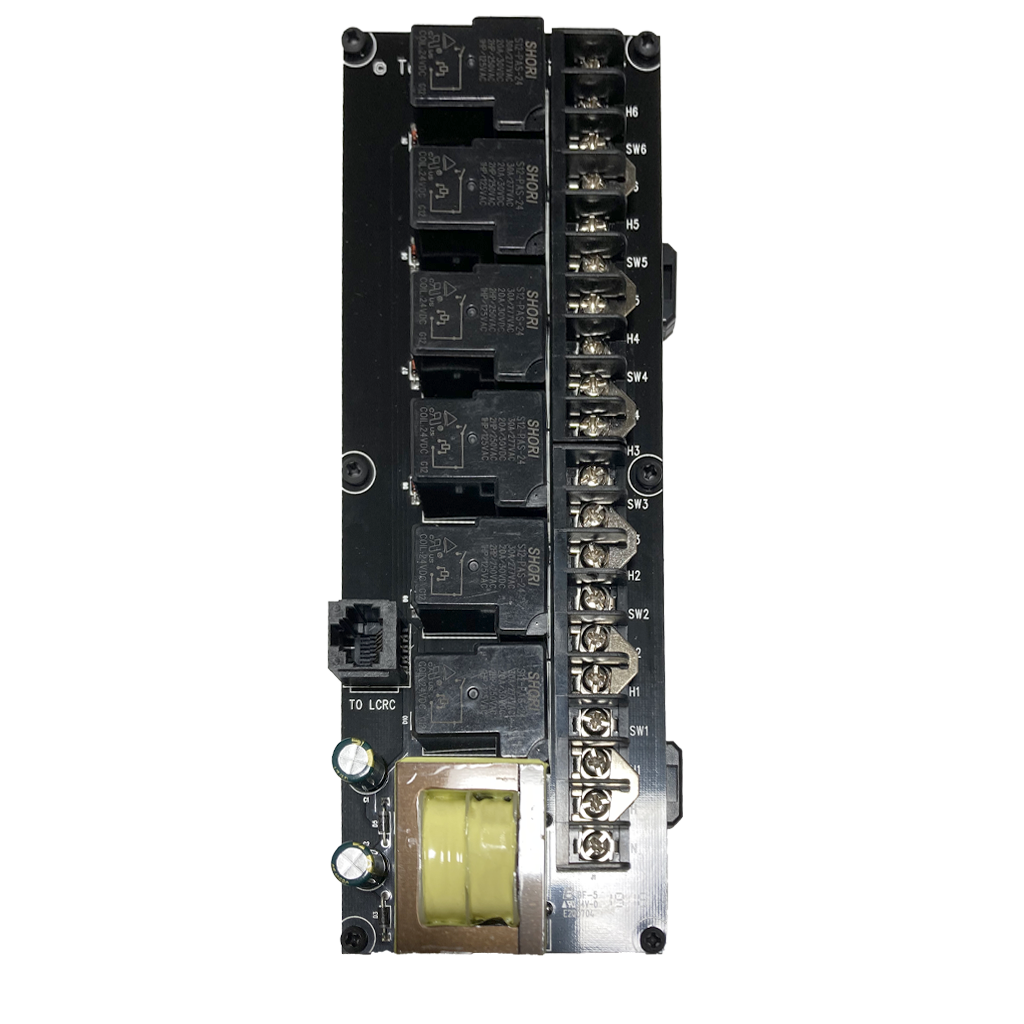

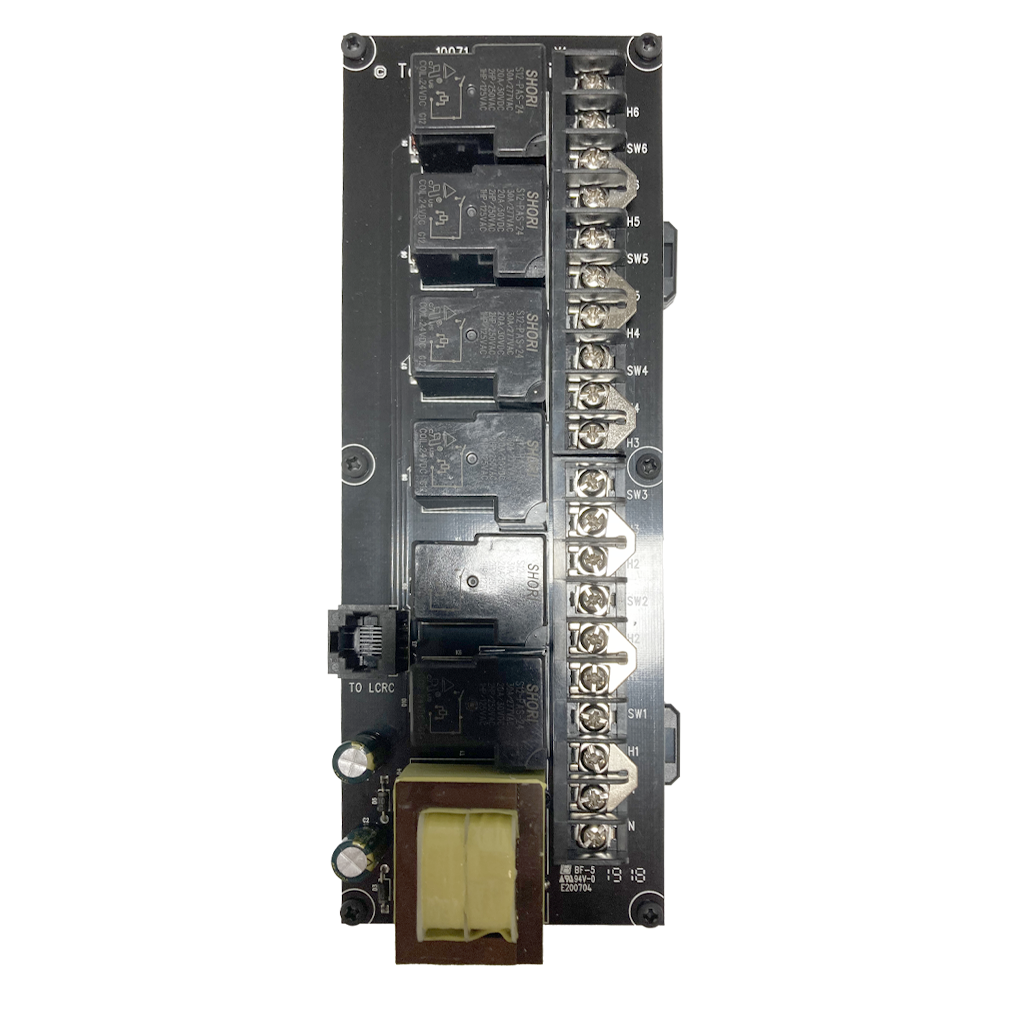

ZoneZ Lite-L Replacement Relay Board

SKU: RLY-6R-20-120

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$275.30/ea

Replacement Relay Board Only - Contact Touch-plate for Replacement Option for the Control Board
Replacement for Part #(s): RLY-6R-20-120

Overview

Documentation

The ZoneZ-Lite 6 Relay Board is available as a replacement relay board for existing ZoneZ-Lite panels. The full panel is no longer available due to the low-voltage board being discontinued. Refer to our Calypso Nextgen System, ZoneZ Universal System, or Soluxe Universal System for current relay panel options. We also have dimmer panels available.

Touch-Plate Model #: RLY-6R-20-120

Features

20AMP Relays

Benefits

Replacement for ZoneZ Lite 6 Relay Boards

Common Applications

Residential or Commercial Use

Documentation

Sales Sheets:

None Available
None Available

Technical Documents:

ZoneZ Lite Manual
ZoneZ Lite Manual
Wiring Specifications
Wiring Specifications

Engraving Templates:

None Available
None Available

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Related Products

Related products

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: RLY-6R-20-120
Direct Replacement for Part #(s): RLY-6R-20-120

Panel Details:

Product Type: Replacement Relay Board
Operational Environment: Non-condensing atmosphere
# of Relays: 6-Relay
Product Material: Black rynite plastic
Enclosure Type: N/A

Panel Dimensions:

Height: 9 in.
Width: 3.25 in.
Weight: 1.5 lbs
Depth: 0.5 in.
Diameter: -

Technical Information:

Wire Type(s): RJ45 - control board to relay board connection
Dimmer Wattage: N/A
Load Compatibility: • Incandescent, Fluorescent, LED, Magnetic low-voltage, Electronic low-voltage
Power Input: • 120VAC
Compatible Products: • ZoneZ-Lite Control Boards
