ZoneZ DP – Single Dimmer Pack

Save or Share This Page

Facebook Twitter Youtube Envelope Envelope Share-alt

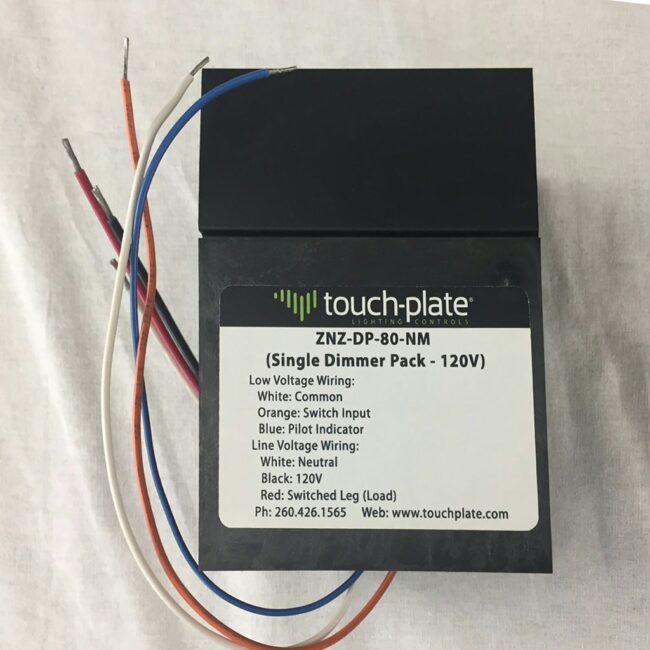

ZoneZ DP – Single Dimmer Pack

SKU: ZNZ-DP-80-NM

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$121.50/ea

Must not Share Commons with Legacy Touchplate or GE/Remcon Systems.
Replacement for Part #(s): N/A

Overview

Documentation

The ZoneZ Single Dimmer packs are the perfect solution for applications requiring a single dimmer mounted remotely. The ZoneZ Single Dimmer packs have a built-in transformer, making them stand-alone devices, not dependent on a system controller or a relay/dimmer panel in order to function.

Touch-Plate Model #: ZNZ-DP-80-NM

Features

Can be Remotely Installed
The ZoneZ Single Dimmer pack can be used to dim LED bulbs and fixtures, provided the LED is forward phase. This dimmer pack is NOT compatible with LEDs that are reverse phase.
Maximum Ratings: Incandescent Max Watts: 800W; LED Max Watts: 450W

Benefits

Dimmer and Transformer in One
Threaded Nipple to Junction Box
Works with Existing Touchplate Switches: Long Button Presses Dim Up and Dim Down; Short Button Presses Cycle it On and Off.

Common Applications

Replacing Remotely Installed Relays
Replacement for GE/Remcon Relay/Transformer Combinations
Hotels and medical facilities as they are small enough to be mounted in the ceiling above each room or hospital bed.

Documentation

Sales Sheets:

ZoneZ Dimmer Pack Sales Sheet
ZoneZ Dimmer Pack Sales Sheet

Technical Documents:

None Available
None Available

Engraving Templates:

None Available
None Available

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Related Products

Related products

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: ZNZ-DP-80-NM
Direct Replacement for Part #(s): N/A

Panel Details:

Product Type: Single Dimmer Pack
Operational Environment: Non-condensing atmosphere
# of Relays: -
Product Material: Pet Rynite 530 Case; Heatsink Material: Aluminum
Enclosure Type: N/A

Panel Dimensions:

Height: 3.325 in.
Width: 4.5 in.
Weight: 1.2 lbs
Depth: 1.89 in.
Diameter: -

Technical Information:

Wire Type(s): 18-22 AWG
Dimmer Wattage: Incandescent Max Watts: 800W; LED Max Watts: 450W
Load Compatibility: • Incandescent Lighting, Fluorescent Lighting, Forward Phase LED Lighting, Magnetic Low Voltage Lighting, Electronic Low Voltage Lighting
Power Input: • Primary voltage: 120VAC
Compatible Products: • Touchplate Analog Contact Closure Switches
