SKU: ULTS1-0404F-WHT
3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!
$247.20/ea
Must be powered with isolated Class 2 power supply. Shield or ground must be isolated from the ground on the power supply.
Replacement for Part #(s): ULT-4B-4L-XXX-SS
Features
The stations are addressable and programmable through a Touch-Plate Master Controller or other controller using RS485.
Selectable LED colors: Green, Red, Blue, Yellow, Purple, Cyan, and White
Standard Decora Coverplate
Available in Mult-gang configurations - Contact us for ordering
Benefits
Communicates via the RS485 network.
Buttons and LEDs can be added to existing stations without the need for additional wires.
Common Applications
Residential or Commercial Applications with a front end controller using RS485 communication
Technical Documents:

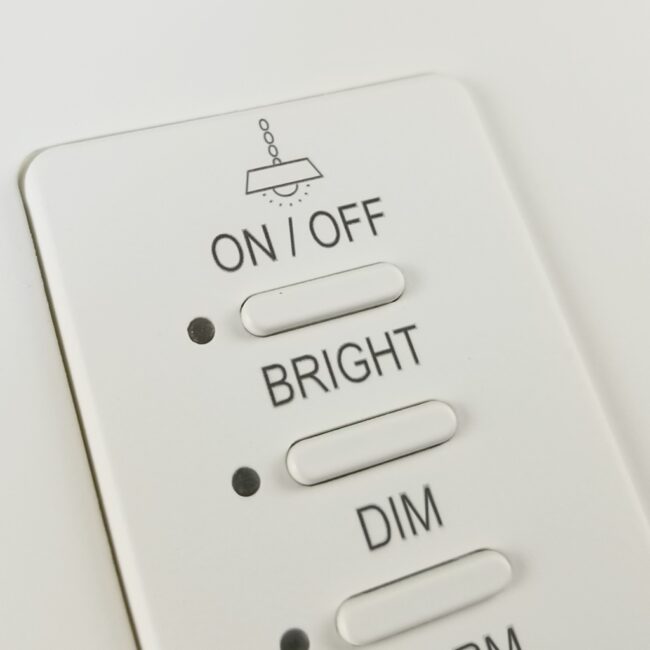

Engraving Templates:
Touch-Plate's Guaranteed Service
Your System Feeling Stuck?
Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online. Check out ‘Technical Support’ from the main menu!
Would you rather work with someone directly? You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.
You can also give us a call during our regular business hours at (260)426-1565. We look forward to helping you get the lights back on!
Product Specifications
Manufacturing Information:
Manufacturer: Touch-Plate
Product SKU #: ULTS1-0404F-WHT
Direct Replacement for Part #(s): ULT-4B-4L-XXX-SS
Product Details:
Product Type: Digital 5 Wire Wall Switch
Gang Configuration: 1-Gang (Single)
Signal Configuration: digital
Product Material: Painted Plastic Coverplate
# of Buttons: 4-Button
Included in Box: Complete Unit (Switch, Cover, Screws)
Product Dimensions:
Height: 4.88 in.
Width: 3.125 in.
Depth: 0.549 in.
Button Dimensions:
Height: 0.1 in.
Width: 0.435 in.
Technical Information:
Wire Type: Axlink 22/01PSH+ 18/2C or equivalent
LED Voltage Range: 12 - 24VAC/VDC
Switching: • 5 Wire Digital Switch Station
•
•
Power Input: • 12-24VAC/VDC
• Requires Class 2 Isolated Power Supply
Contact Type: Dry contact
