Calypso Legacy Control Board

Save or Share This Page

Facebook Twitter Youtube Envelope Envelope Share-alt

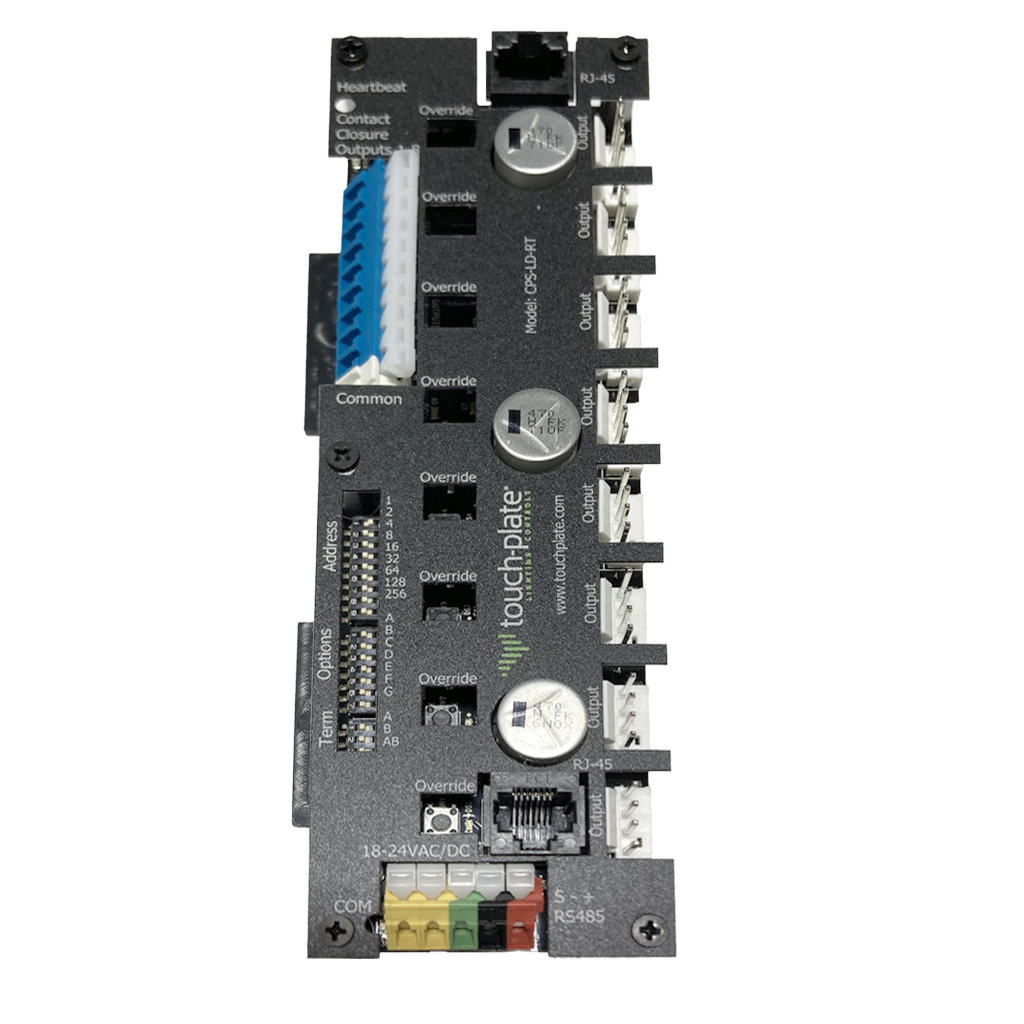

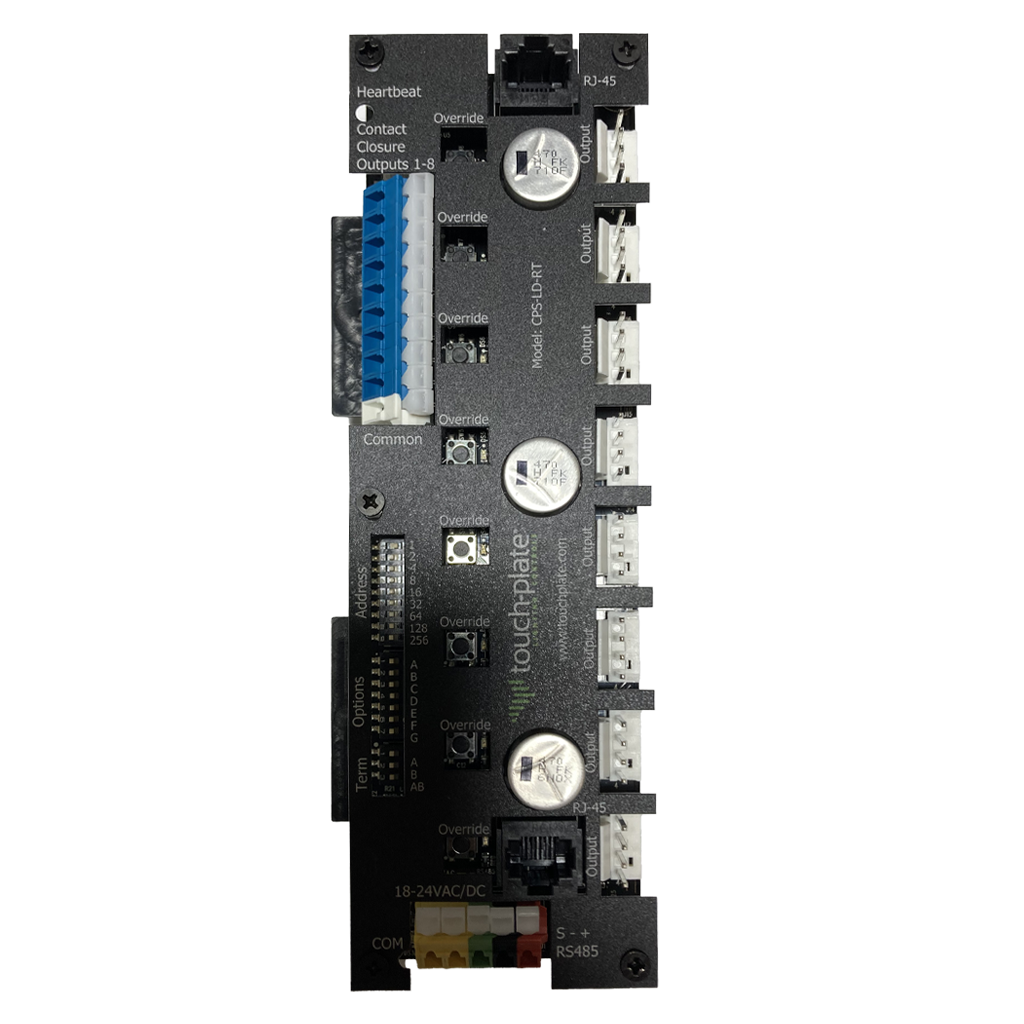

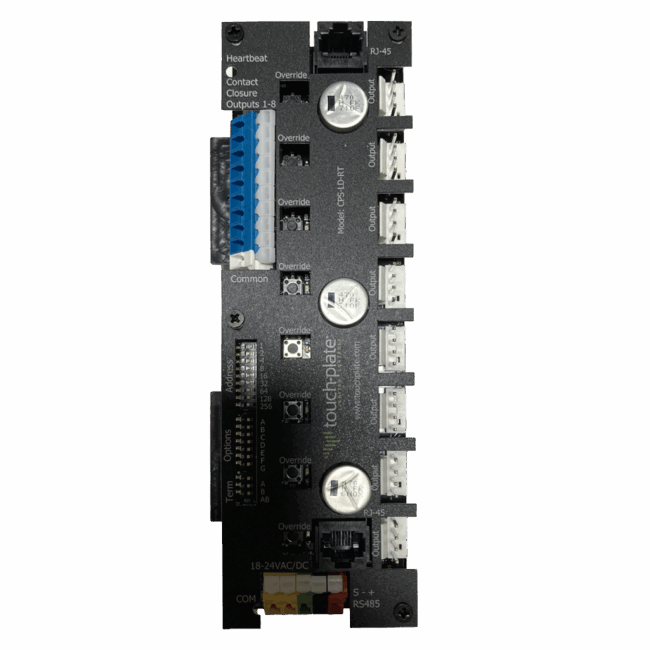

Calypso Legacy Control Board

SKU: CPS-LD-RT

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$372.70/ea

Replacement Board Only.
Replacement for Part #(s): CPS-LD-RT

Overview

Documentation

The Calypso Legacy control board is available as a replacement DMX board. The full panel is no longer available due to the 3000-PL being discontinued. Refer to our Calypso Nextgen System, ZoneZ Universal System, or Calypso Prime System for current relay panel options. We also have dimmer panels available.

Touch-Plate Model #: CPS-LD-RT

Features

DMX: Requires a Master Controller

Benefits

Replacement for Calypso Legacy Control Boards

Common Applications

Residential or Commercial Use

Documentation

Sales Sheets:

Calypso Legacy Sales Sheet
Calypso Legacy Sales Sheet

Technical Documents:

Calypso Legacy Quick Start Manual
Calypso Legacy Quick Start Manual
Wiring Specifications
Wiring Specifications

Engraving Templates:

None Available
None Available

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Related Products

Related products

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: CPS-LD-RT
Direct Replacement for Part #(s): CPS-LD-RT

Panel Details:

Product Type: Calypso Legacy Control Board
Operational Environment: Non-Condensing Atmosphere
# of Relays: 8-Relay
Product Material: Black rynite
Enclosure Type: N/A

Panel Dimensions:

Height: 8 in.
Width: 2.5 in.
Weight: 0.75 lbs
Depth: 2.25 in.
Diameter: -

Technical Information:

Wire Type(s): RS485 or RJ45 for Communication
Dimmer Wattage: N/A
Load Compatibility: • Incandescent lighting, Fluorescent lighting, LED lighting, Magnetic low-voltage lighting, Electronic low-voltage lighting
Power Input: • 18-24VAC/DC
Compatible Products: • Touchplate 5 Wire Smart Switches
• 3000-PL or PL-RLY Relays
