5000 Series 1 Button Almond Wall Switch

Save or Share This Page

Facebook Twitter Youtube Envelope Envelope Share-alt

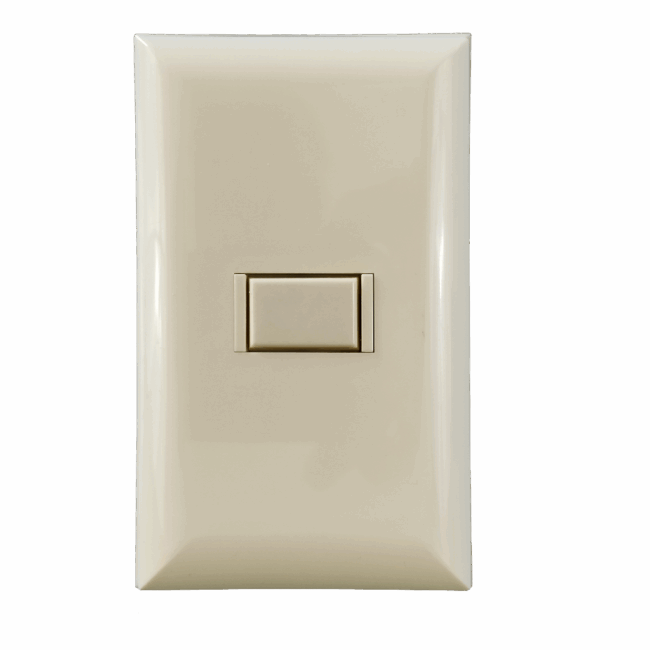

5000 Series 1 Button Almond Wall Switch

SKU: 500S1-0100A-ALM

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$18.80/ea

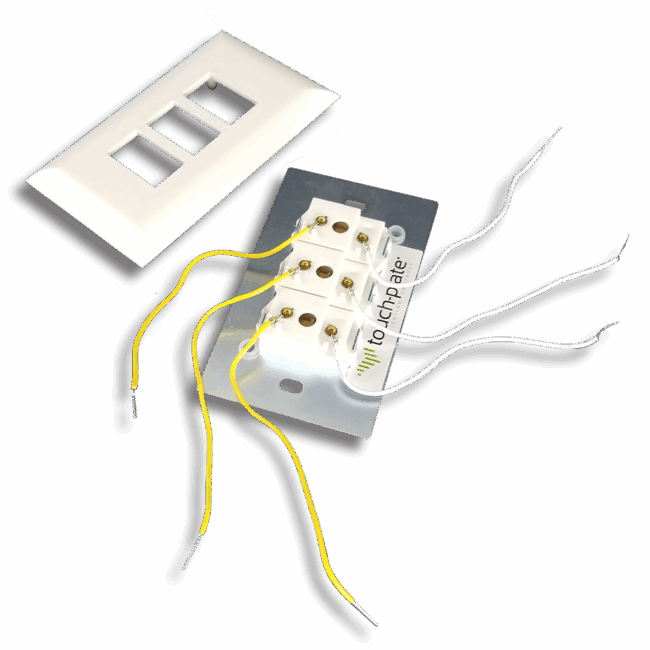

Complete Unit includes Switch, Screws & Cover Plate. LED indicator lights are not available with this model.
Replacement for Part #(s): 5001, 50-1, 1001

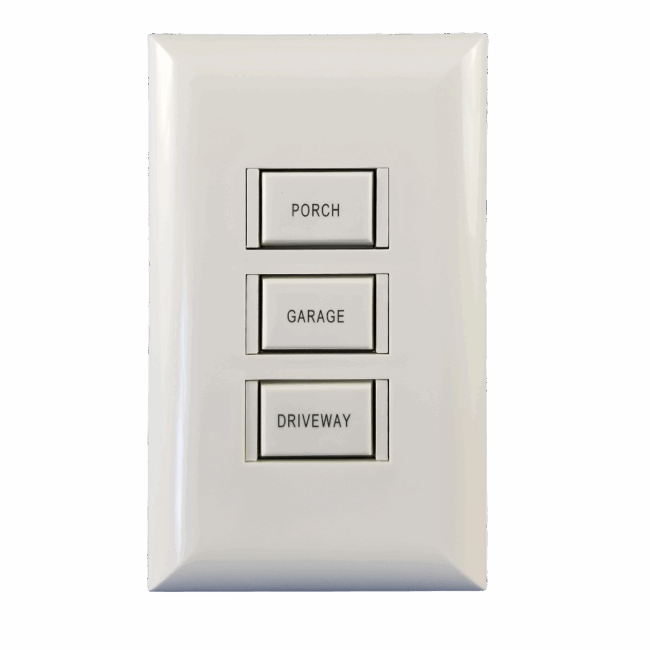

You can learn more about Switch Engraving upgrades by clicking the link.

Engraving Requires 3-5 Business Days Production Time.

Overview

Documentation

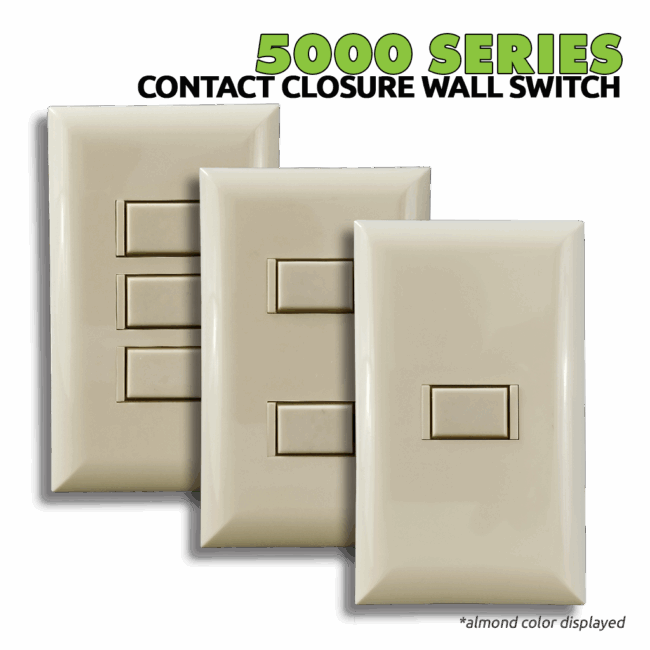

The 5000 Series Wall Switch is a practical & elegant low-voltage switch solution. Its attractive design, and medium-sized rectangular buttons, topped with a screwless cover make the 5000 series an appealing choice for a variety of applications.

Touch-Plate Model #: 500S1-0100A-ALM

Features

Complete with Switch, Screws and Coverplate
Screwless Snap-in Coverplate

Benefits

Engravable Button Caps
Compatible with all of Touchplate's 2-wire Systems

Common Applications

Residential

Documentation

Sales Sheets:

5000 Series Sales Sheet
5000 Series Sales Sheet

Technical Documents:

5000 Series Wiring Diagram
5000 Series Wiring Diagram
5000 Series 1 Button Dimensional Drawing
5000 Series 1 Button Dimensional Drawing

Engraving Templates:

5000 Series 1 Button Engraving Template
5000 Series 1 Button Engraving Template

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Related Products

Related products

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: 500S1-0100A-ALM
Direct Replacement for Part #(s): 5001, 50-1, 1001

Product Details:

Product Type: Analog Contact Closure Wall Switch

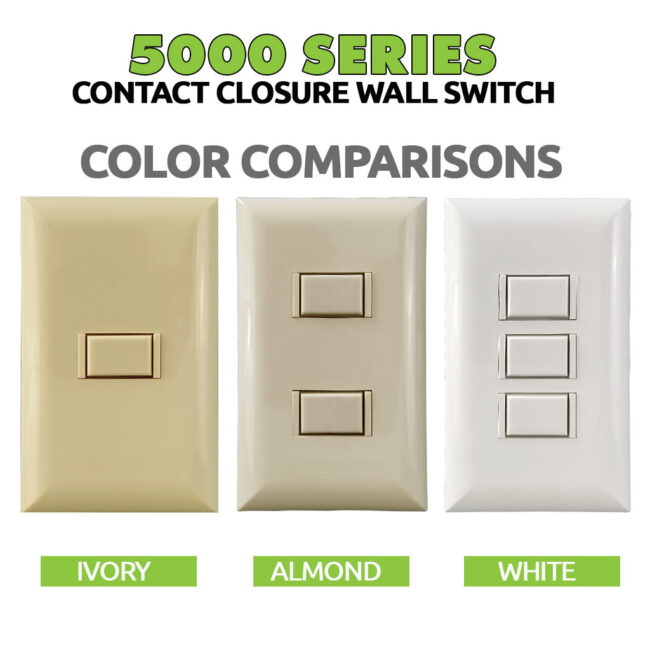

Product Color: Almond
Gang Configuration: 1-Gang (Single)
Signal Configuration: analog
Product Material: Plastic Coverplate
# of Buttons: 1-Button
Included in Box: Complete Unit (Switch, Cover, Screws)

Product Dimensions:

Height: 4.5 in.
Width: 2.75 in.
Depth: 0.518 in.

Button Dimensions:

Height: 0.62 in.
Width: 1.124 in.

Technical Information:

Wire Type: 18-22 AWG
LED Voltage Range: -
Switching: • Two-wire momentary switch
• Single pole, single throw
•
Power Input: • Primary Voltage is 24VAC/VDC
•
Contact Type: Dry contact, Contact Closure
