Analog

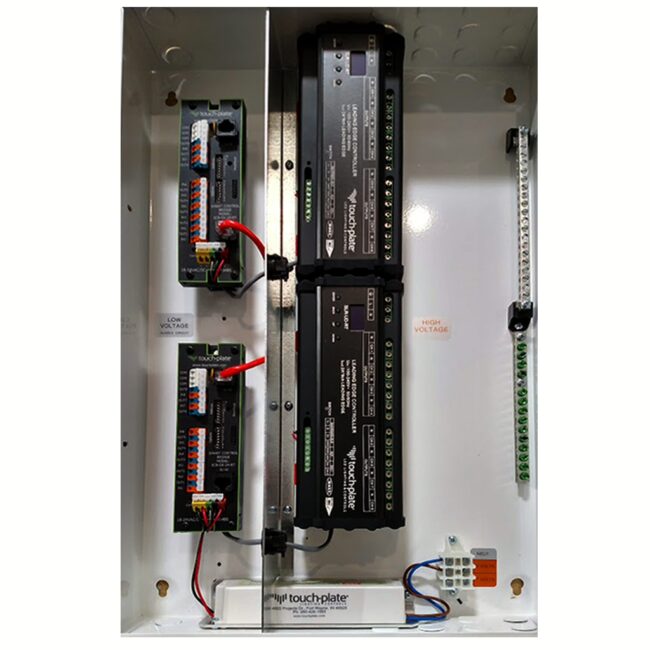

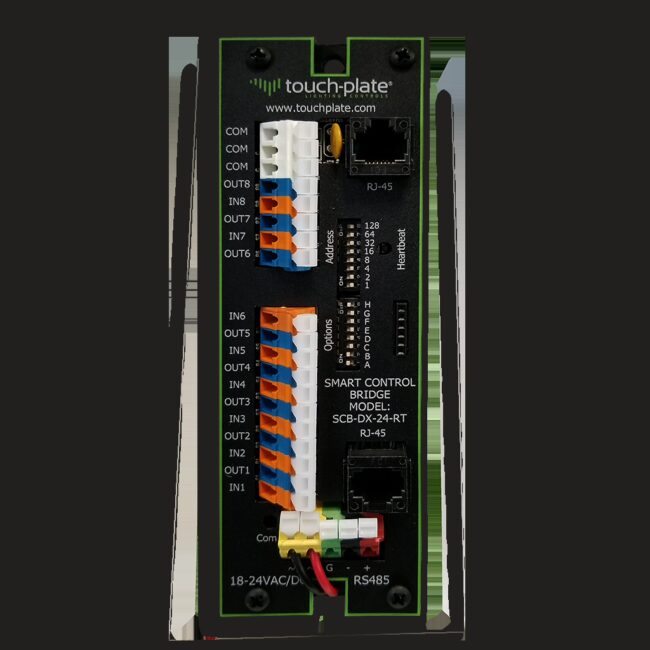

ZoneZ Universal 16 Dimmer Panel

Analog
ZoneZ Universal 16 Dimmer Panel

SKU: ZZUDP-XX120-0016

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$2,675.00/ea

When upgrading from our Legacy Touch-plate or GE/Remcon system, the entire system should be upgraded at one time due to shared common wires.
Replacement for Part #(s): -

Overview

Documentation

The ZoneZ Universal dimmer panels are perfect for home or small business applications desiring simple low-voltage control with dimming. Besides new installations, ZoneZ Universal dimmer panels are also ideal for upgrades of existing low-voltage systems. ZoneZ Universal dimmer panels are the simplest dimmable lighting control system Touch-Plate offers.
Considering a system upgrade with ZoneZ Universal? Click here for more information.

Touch-Plate Model #: ZZUDP-XX120-0016

Features

Dimming through longer button presses to dim up and dim down. Short button presses cycle it on and off.
Pilot light functionality (with updated LED indicator wall switch)
2 AMPs per dimmer channel
Can put individual circuits in relay mode for loads that don't need dimmed.
Can combine ZoneZ Universal Relays and ZoneZ Universal Dimmers in one panel - Contact us for ordering.

Benefits

This upgrade system reuses the existing wiring in the walls.
Only switches with lighted buttons would need to be changed at the time of upgrade. The non-lit Touchplate switches can continue to be used with this system.
Future upgradeable to smart control/timing with purchase of Time-Keeper panel and re-programming of control board.

Common Applications

Residential or Commercial
Upgrade for existing Touch-plate or GE/Remcon low voltage relay panels.

Documentation

Sales Sheets:

Technical Documents:

Engraving Templates:

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Related Products

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: ZZUDP-XX120-0016
Direct Replacement for Part #(s): -

Panel Details:

Product Type: Upgrade Dimmer Panel
Operational Environment: 0 - 60C (0 - 140F) non-condensing atmosphere
# of Relays: 16-Relay
Product Material: Boards: Black Rynite
Enclosure Type: Powder Coated White; U.S. Gauge Steel

Panel Dimensions:

Height: 21.5 in.
Width: 14.25 in.
Weight: 26 lbs
Depth: 3.75 in.
Diameter: -

Technical Information:

Wire Type(s): 18-22 AWG
Dimmer Wattage: 2 AMPs per channel/Roughly 240W Depending on load type
Load Compatibility: • Incandescent
• Fluorescent
• LED
• Magnetic Low Voltage
• Electronic Low Voltage
Power Input: • 120VAC feed into Transformer
Compatible Products: • Touch-plate Analog Contact Closure Wall Switches
