Ultra 5 Button Black BACnet Digital Control Station

Save or Share This Page

Facebook Twitter Youtube Envelope Envelope Share-alt

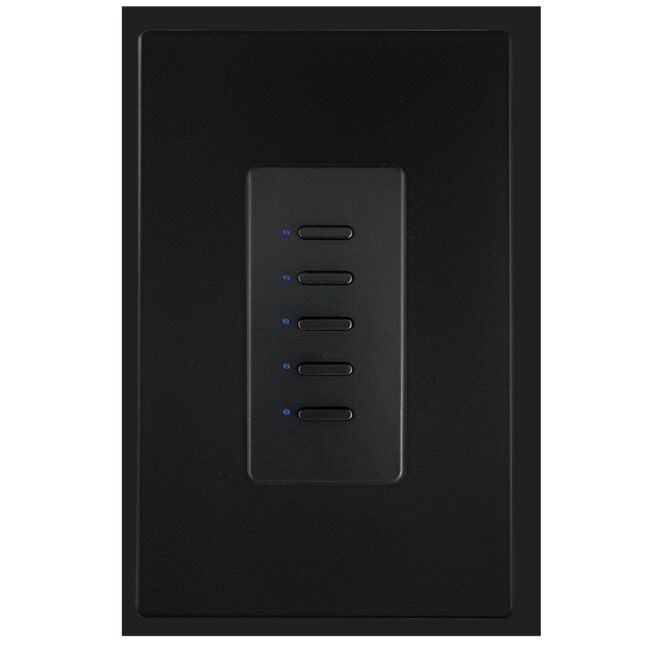

Ultra 5 Button Black BACnet Digital Control Station

SKU: ULTS1-0505B-BLK

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$258.50/ea

Must be powered with isolated Class 2 power supply. Shield or ground must be isolated from the ground on the power supply.
Replacement for Part #(s): ULT-5B-5L-XXX-SS

You can learn more about Switch Engraving upgrades by clicking the link.

Engraving Requires 3-5 Business Days Production Time.

Overview

Documentation

The BACnet Series Digital Control station is one of our native BACnet MSTP low-voltage switch solutions. Designed to be a simple and cost-effective solution used in custom or pre-existing lighting control systems, integrators can benefit from the ability to work with BACnet.

Touch-Plate Model #: ULTS1-0505B-BLK

Features

Selectable LED colors: Green, Red, Blue, Yellow, Purple, Cyan, and White
Supports subscriptions to button change of values (COVs)
BACnet Protocol Revision 7
Standard Decora Coverplate
Available in Mult-gang configurations - Contact us for ordering

Benefits

Communicates via BACnet

Common Applications

Can be used for almost any BACnet application that requires a button for control
A stand-alone native BACnet device designed to be part of a custom integrated solution

Documentation

Sales Sheets:

Ultra BACnet Sales Sheet
Ultra BACnet Sales Sheet

Technical Documents:

Ultra BACnet Manual
Ultra BACnet Manual
Ultra BACnet PIC Sheet
Ultra BACnet PIC Sheet

Engraving Templates:

Ultra 5 Button Engraving Template
Ultra 5 Button Engraving Template

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: ULTS1-0505B-BLK
Direct Replacement for Part #(s): ULT-5B-5L-XXX-SS

Product Details:

Product Type: Digital BACnet Wall Switch
Product Color: Black
Gang Configuration: 1-Gang (Single)
Signal Configuration: -
Product Material: Painted Plastic Coverplate
LED Indicator Color: Multicolor -
# of Buttons: -
Included in Box: -

Product Dimensions:

Height: 4.88 in.
Width: 3.125 in.
Depth: 0.549 in.

Button Dimensions:

Height: 0.1 in.
Width: 0.435 in.

Technical Information:

Wire Type: Axlink 22/01PSH+ 18/2C or equivalent
LED Voltage Range: 12 - 24VAC/VDC
Switching: • BACnet Digital Switch Station
•
•
Power Input: • 12-24VAC/VDC
• Requires Class 2 Isolated Power Supply
Contact Type: Dry contact
