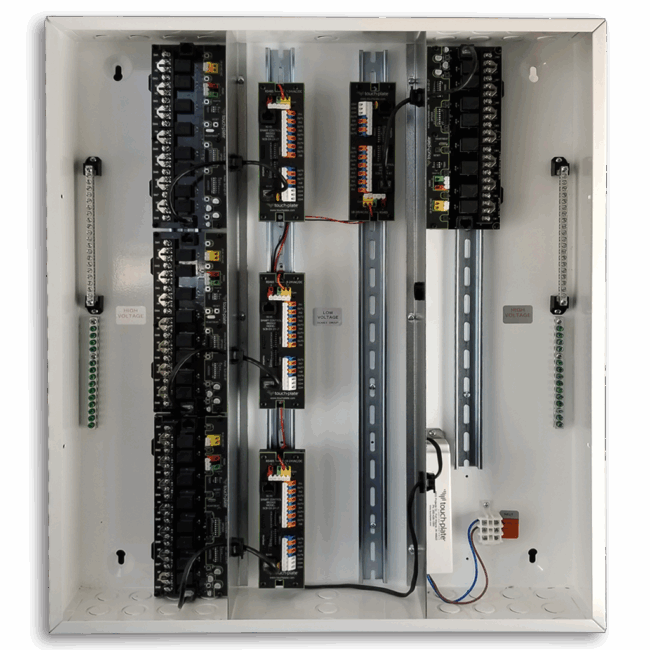

Soluxe Universal Contact Closure Programmable 32 Relay Panel

DMX
Soluxe Universal Contact Closure Programmable 32 Relay Panel

SKU: SLXUD-XX120-32RP-32I

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$4,880.30/ea

Requires a front end controller to operate (such as the Time-Keeper MAX).
Replacement for Part #(s): -

Product Spotlight

Play Video

Overview

Documentation

The Soluxe Universal contact closure programmable relay panel provides control of 8 relays per board. It is DMX-ready, requiring only a connection to the appropriate front-end controller. For residential upgrades, analog/contact closure switches can become smart switches through the use of the Time-Keeper programmable unit. Any button press can be programmed to control a group of relays, start a scene or sequence, or various other programmable functions. Apart from applications requiring specific protocols, the Soluxe Universal requires a Touch-Plate Master Controller to perform.

Touch-Plate Model #: SLXUD-XX120-32RP-32I

Features

Smart Control Bridge converts simple analog switches into fully programmable buttons.
Electronically held relays
Comes with low voltage switch input board, relay board, enclosure and transformer.
Can combine Soluxe Universal Relays and Solare Universal Dimmers in one panel - Contact us for ordering.

Benefits

Fully programmable (timing, scenes, grouping, sequences, dusk-dawn events) with appropriate front end controller such as Time-Keeper MAX
Can be used with simple, older analog wall switches.
Smart Control with any web connected device (phone/tablet/computer) is possible with the addition of a Web Interface to the Time-Keeper Controller.
277V Available - Contact us for ordering.

Common Applications

Residential application where programming/timing/scenes/events (requires Time-Keeper) and optional smart control is desired (requires Web Interface).
Commercial applications that have a DMX controller that communicates on a RS-485 network and require contact closure inputs.
This product is compatible with Touch-Plate's TimeKeeper Master Controllers. Click below to learn more.

Documentation

Sales Sheets:

Technical Documents:

Engraving Templates:

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Related Products

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: SLXUD-XX120-32RP-32I
Direct Replacement for Part #(s): -

Panel Details:

Product Type: Programmable Relay Panel with Contact Closure Inputs
Operational Environment: 0 - 60C (0 - 140F) non-condensing atmosphere
# of Relays: 32-Relay
Product Material: Board: Black Rynite
Enclosure Type: Powder Coated White; U.S. Gauge Steel

Panel Dimensions:

Height: 28 in.
Width: 24 in.
Weight: 52 lbs
Depth: 5 in.
Diameter: -

Technical Information:

Wire Type(s): 24 AWG, 2PR, Shielded
Dimmer Wattage: -
Load Compatibility: • Incandescent
• Fluorescent
• LED
• Magnetic Low Voltage
• Electronic Low Voltage
Power Input: • 120VAC feed into Transformer
Compatible Products: • Touch-plate Analog/Contact Closure Switches
• Time-Keeper MAX programmable controller with optional Web Interface
• Other DMX Controllers using the 512 Protocol.
