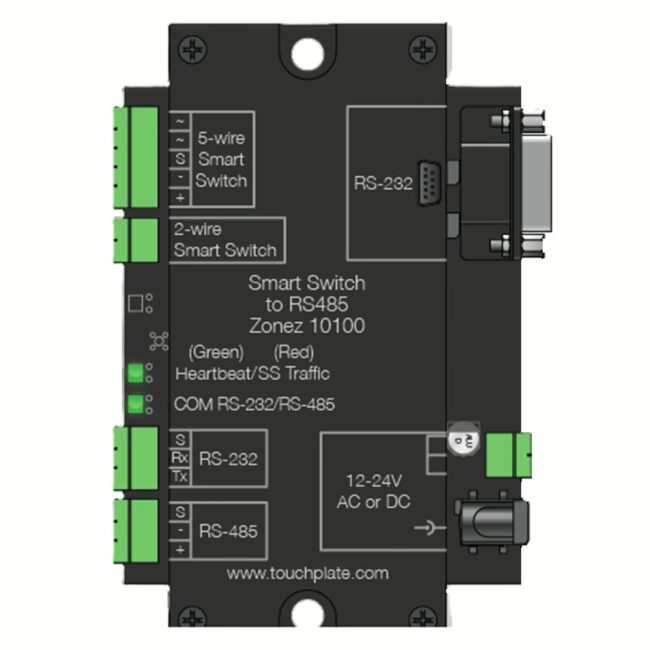

Smart Control Gateway – Ascii Version

Smart Control Gateway – Ascii Version

SKU: SCG-XA-RT

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$466.30/ea

Replacement for Part #(s): N/A

Overview

Documentation

The Smart Control Gateway – Ascii version allows for Touch-Plate wall stations, firing cards, relays and dimmers to integrate with other company’s controllers.  This open Ascii protocol is available for integrators.

Touch-Plate Model #: SCG-XA-RT

Features

Mounts via DIN Rail

Benefits

Includes Digital 5-wire Switch Connection, Digital 2-wire Switch Connection, RS485, RS232, and Power Connections

Common Applications

Integration of Touch-Plate products with other non-Touch-Plate controllers.

Documentation

Sales Sheets:

Technical Documents:

Engraving Templates:

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: SCG-XA-RT
Direct Replacement for Part #(s): N/A

Product Details:

Product Type: Smart Control Gateway
Operational Environment: Non-condensing atmosphere
Product Material: PCB
# of Relays: N/A

Product Dimensions:

Height: 4.00 in.
Width: 3.25 in.
Weight: 0.2 lbs
Depth: 0.5 in.
Diameter: -

Technical Information:

Coil Power: N/A
Coil Max Temperature: N/A °F
Wire Type(s): RS485
Coil Resistance: N/A
Protocol: RS485 Network
Auxiliary Contact Configuration: N/A
Latching/Switching: • N/A
Power Input: • 24VAC
Power Output: • 24VAC
Compatible Products: • Controller which can send Ascii Commands
• Smart switches on the RS485 or 2-wire digital network
• Touch-Plate Firing Cards, Relays and Dimmers
