Eclipse Series 2 Button/2 Gang Almond Wall Switch

Save or Share This Page

Facebook Twitter Youtube Envelope Envelope Share-alt

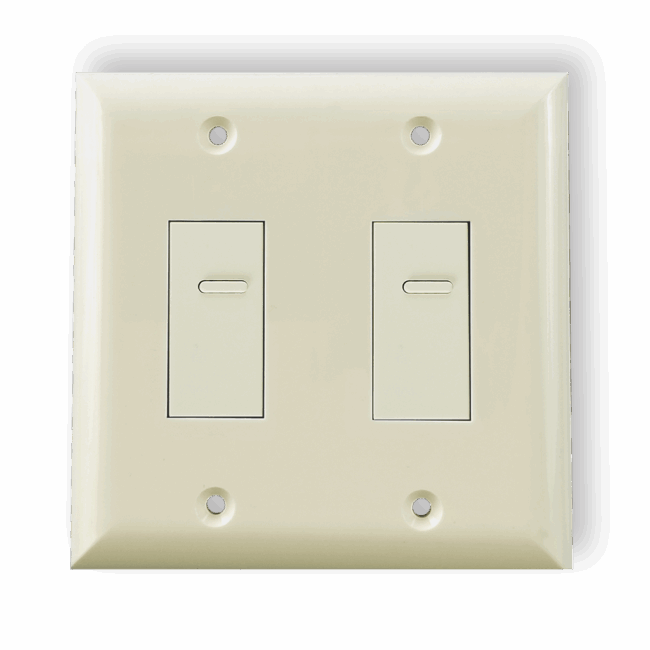

Eclipse Series 2 Button/2 Gang Almond Wall Switch

SKU: ECLS2-0200A-ALM

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$29.50/ea

Please note that our molded plastic may have slight variations in color or finish.
Replacement for Part #(s): ECL-2G-2B-0L, ECLS2-0200A

Overview

Documentation

The Eclipse Series wall switch offers a distinctive style with small, horizontal buttons. Sharing the same great feel and response as the Ultra Series, the Eclipse is assembled more economically making it an affordable, yet reliable choice.

Touch-Plate Model #: ECLS2-0200A-ALM

Features

Complete with Switch, Screws and Coverplate

Benefits

Compatible with all of Touchplate's 2-wire Systems

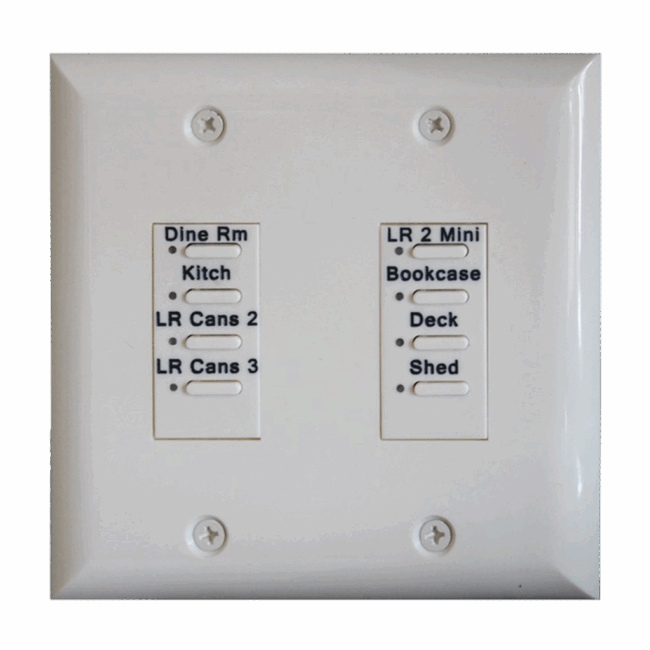

Engravable Housing

Common Applications

Residential or Commercial
Can Be Used in Replacement of Genesis 2 Button Switches

Documentation

Sales Sheets:

Eclipse Series Sales Sheet
Eclipse Series Sales Sheet

Technical Documents:

Eclipse Series Wiring Diagram
Eclipse Series Wiring Diagram
Eclipse 1 Button Dimensional Drawing
Eclipse 1 Button Dimensional Drawing

Engraving Templates:

Eclipse 1 Button Engraving Template
Eclipse 1 Button Engraving Template

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: ECLS2-0200A-ALM
Direct Replacement for Part #(s): ECL-2G-2B-0L, ECLS2-0200A

Product Details:

Product Type: Analog Contact Closure Wall Switch
Product Color: Almond
Gang Configuration: 2-Gang (Double)
Signal Configuration: analog
Product Material: Plastic Coverplate
# of Buttons: 2-Button
Included in Box: Complete Unit (Switch, Cover, Screws)

Product Dimensions:

Height: 4.45 in.
Width: 4.47 in.
Depth: 0.669 in.

Button Dimensions:

Height: 0.1 in.
Width: 0.435 in.

Technical Information:

Wire Type: 18-22 AWG
LED Voltage Range: -
Switching: • Two-wire momentary switch
• Single pole, single throw
•
Power Input: • Primary Voltage is 24VAC/VDC
•
Contact Type: Dry contact, Contact Closure
