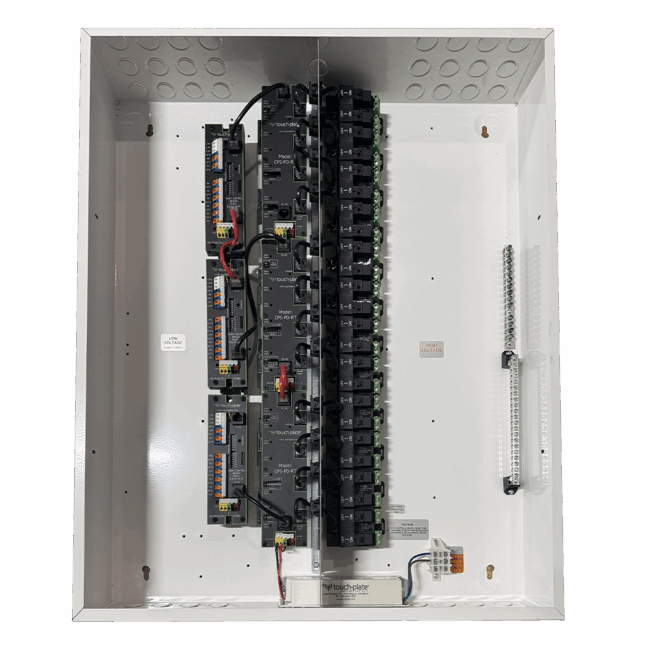

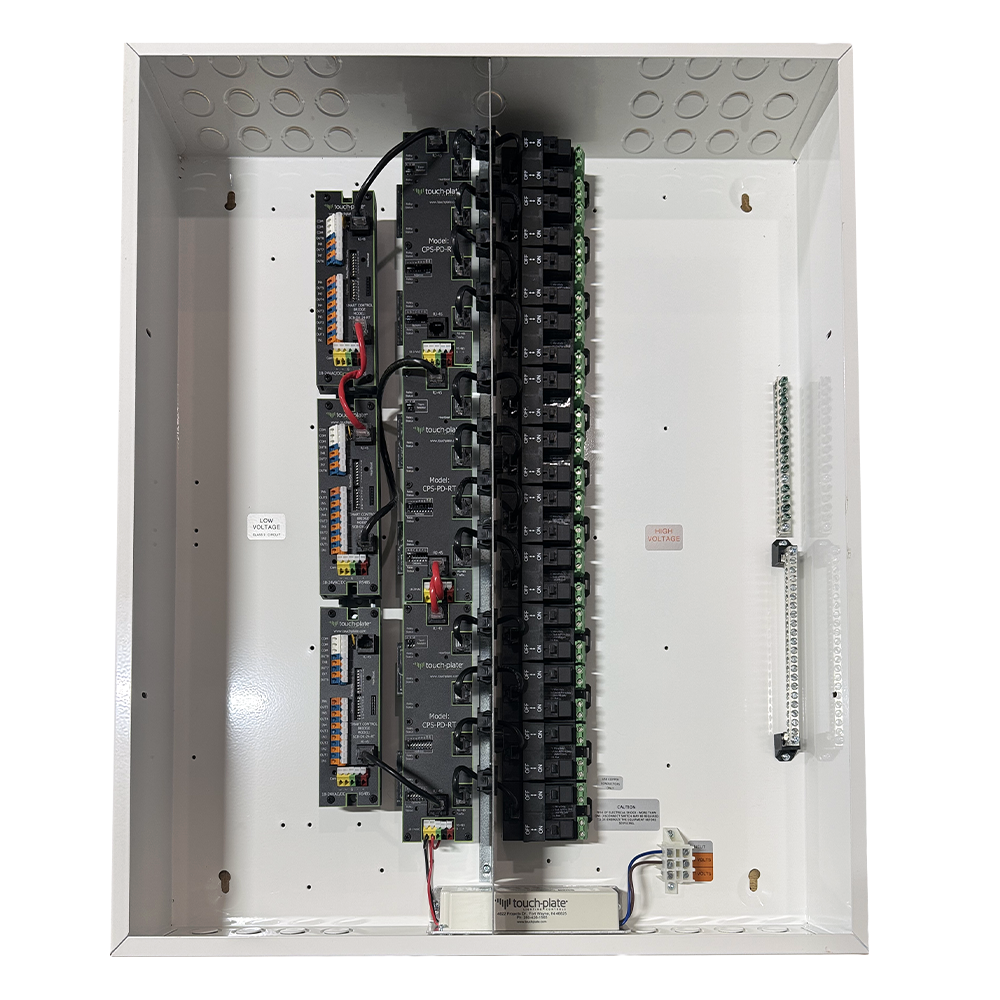

Calypso Prime 32 Relay 277V Panel with I/O

DMX
Calypso Prime 32 Relay 277V Panel with I/O

SKU: CPSPD-25277-32RP-32I

3-5 Business Days Processing Time On All Orders
Need it sooner?
Contact our sales team (260)426-1565!

$4,843.90/ea

Replacement for Part #(s): -

Overview

Documentation

The Calypso Prime relay panel is designed to handle all non-dimmable loads. It is DMX ready, requiring only a connection to an appropriate front-end controller. Apart from applications requiring specific protocols, the Calypso Prime requires a Touch-Plate Master Controller to perform.

Touch-Plate Model #: CPSPD-25277-32RP-32I

Features

Direct DMX connection via any controller that communicates on a RS485 network
Contact Closure Input Board Included
Available in Modbus - contact us for details.

Benefits

DMX512 protocol
Heavy duty 25AMP WCR relays can be manually overridden

Common Applications

Commercial applications that have a DMX controller that communicates on a RS485 network
Residential applications that have a Touch-Plate Master Controller or DMX controller that communicates on a RS485 network

Documentation

Sales Sheets:

Technical Documents:

Engraving Templates:

Touch-Plate's Guaranteed Service

Your System Feeling Stuck?

Need help troubleshooting your Touch-Plate system? We have documentation for all of Touch-Plate’s Products Online.  Check out  ‘Technical Support’ from the main menu!

Would you rather work with someone directly?  You can email questions & pictures to [email protected] and a team member will respond to you as quickly as possible.

You can also give us a call during our regular business hours at (260)426-1565.   We look forward to helping you get the lights back on!

Product Spotlight

Play Video

Product Specifications

Manufacturing Information:

Manufacturer: Touch-Plate
Product SKU #: CPSPD-25277-32RP-32I
Direct Replacement for Part #(s): -

Panel Details:

Product Type: DMX Relay Panel
Operational Environment: 0 - 60C (0 - 140F) non-condensing atmosphere
# of Relays: 32-Relay
Product Material: Boards: Black Rynite
Enclosure Type: Powder Coated White; U.S. Gauge Steel

Panel Dimensions:

Height: 28 in.
Width: 24 in.
Weight: 52 lbs
Depth: 5 in.
Diameter: -

Technical Information:

Wire Type(s): 24 AWG, 2PR, Shielded
Dimmer Wattage: -
Load Compatibility: • Incandescent lighting
• Fluorescent lighting
• LED lighting
• Magnetic low-voltage lighting
• Electronic low-voltage lighting
Power Input: • 277VAC Feed into Transformer
Compatible Products: • DMX Controllers using the 512 Protocol.
• Time-Keeper MAX programmable controller with optional Web Interface
• Contact Closure Inputs
